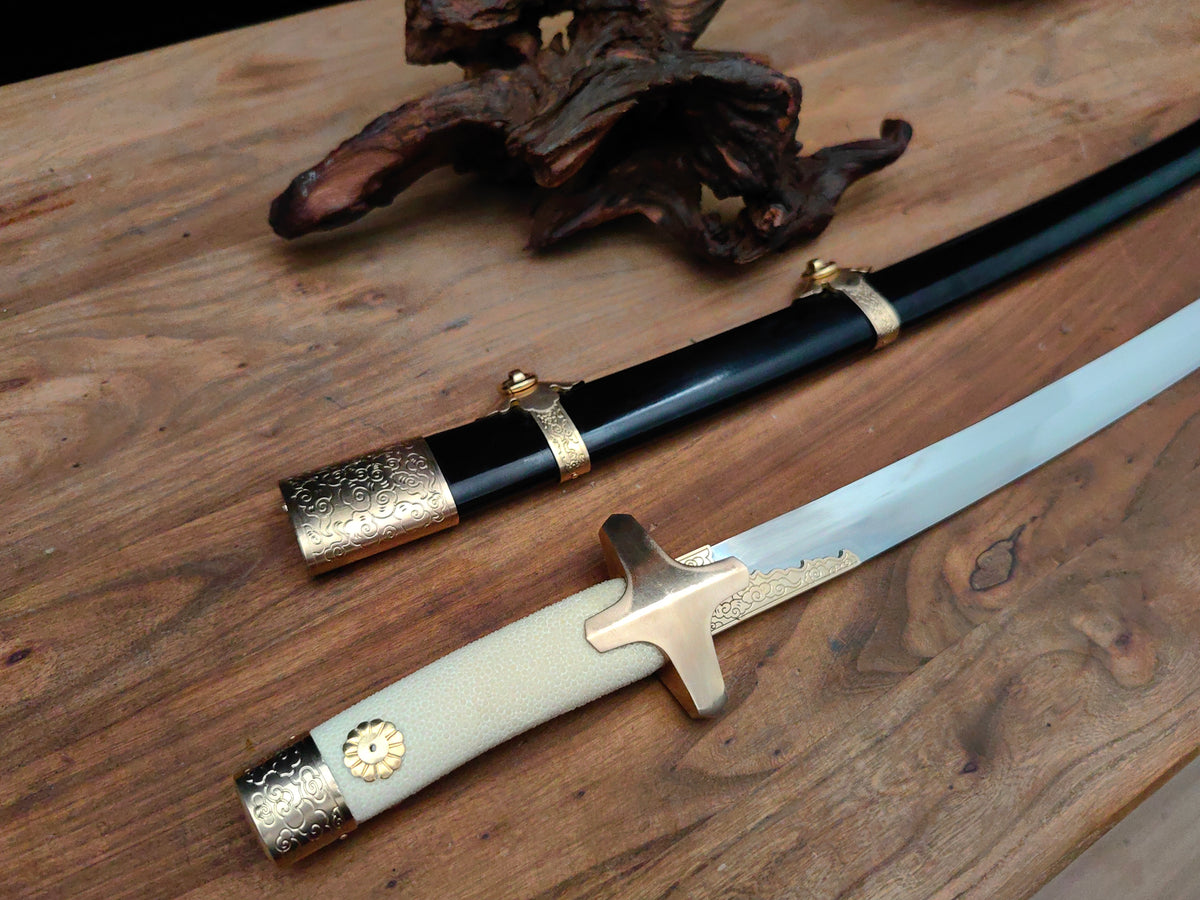

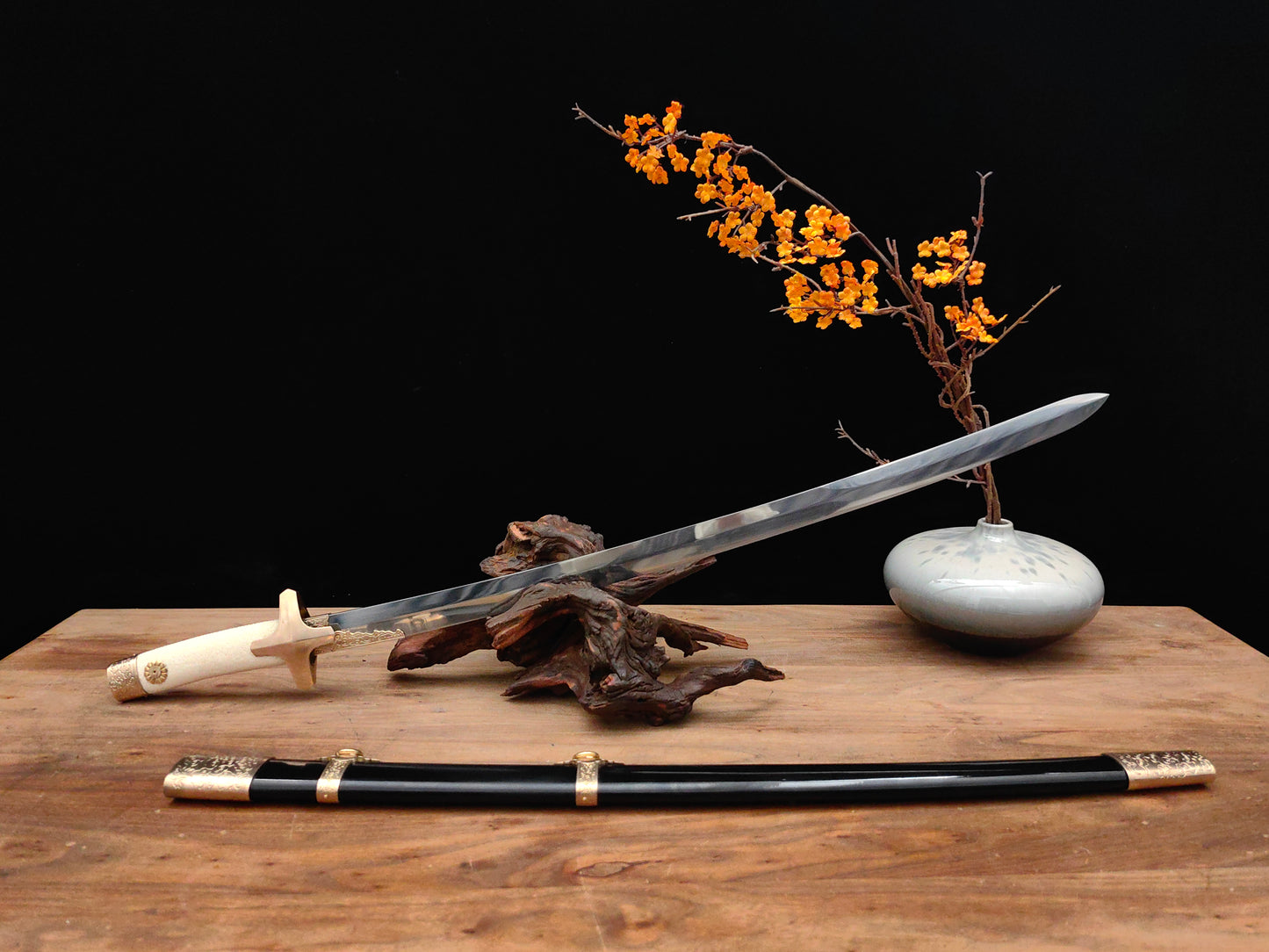

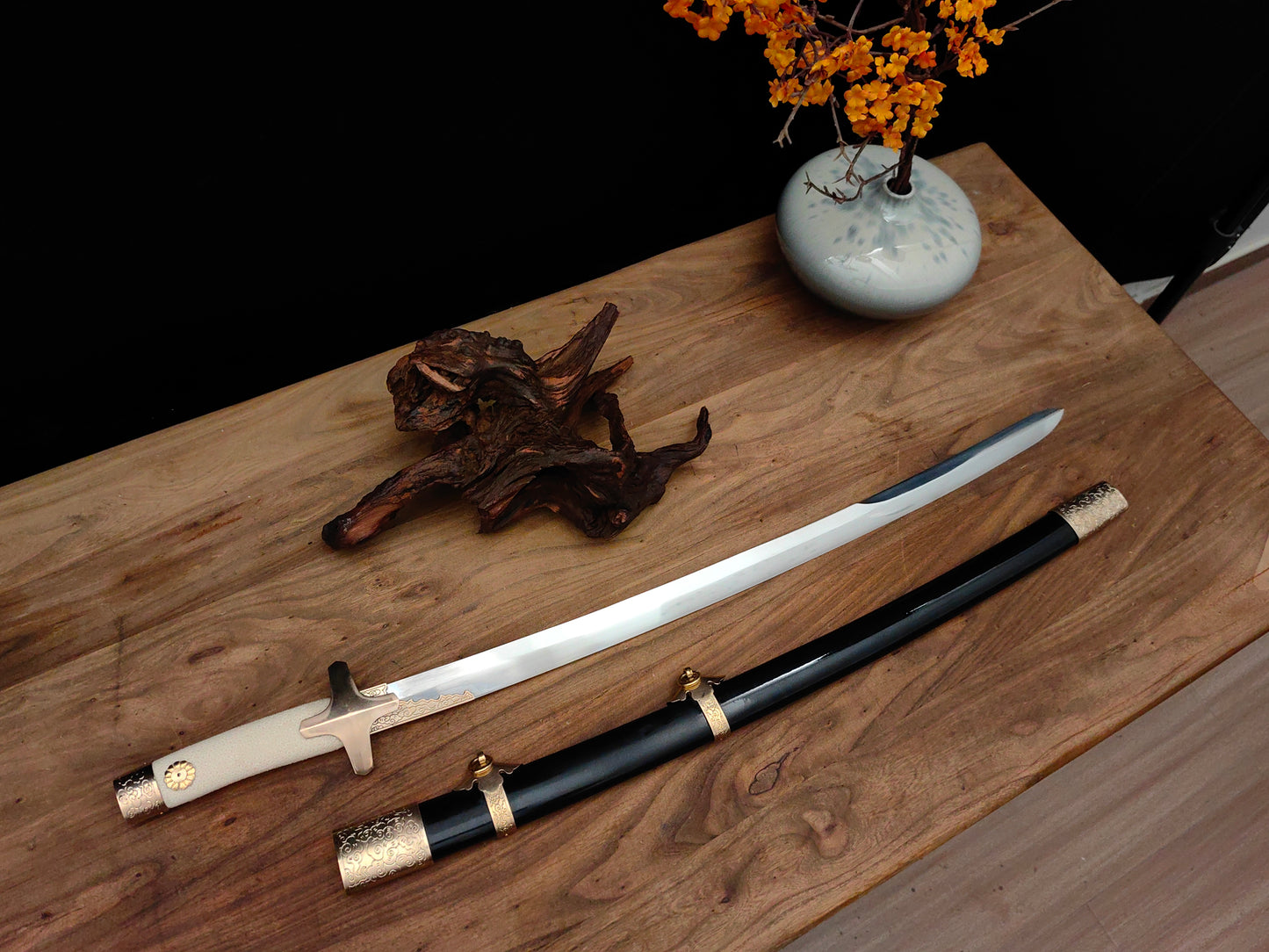

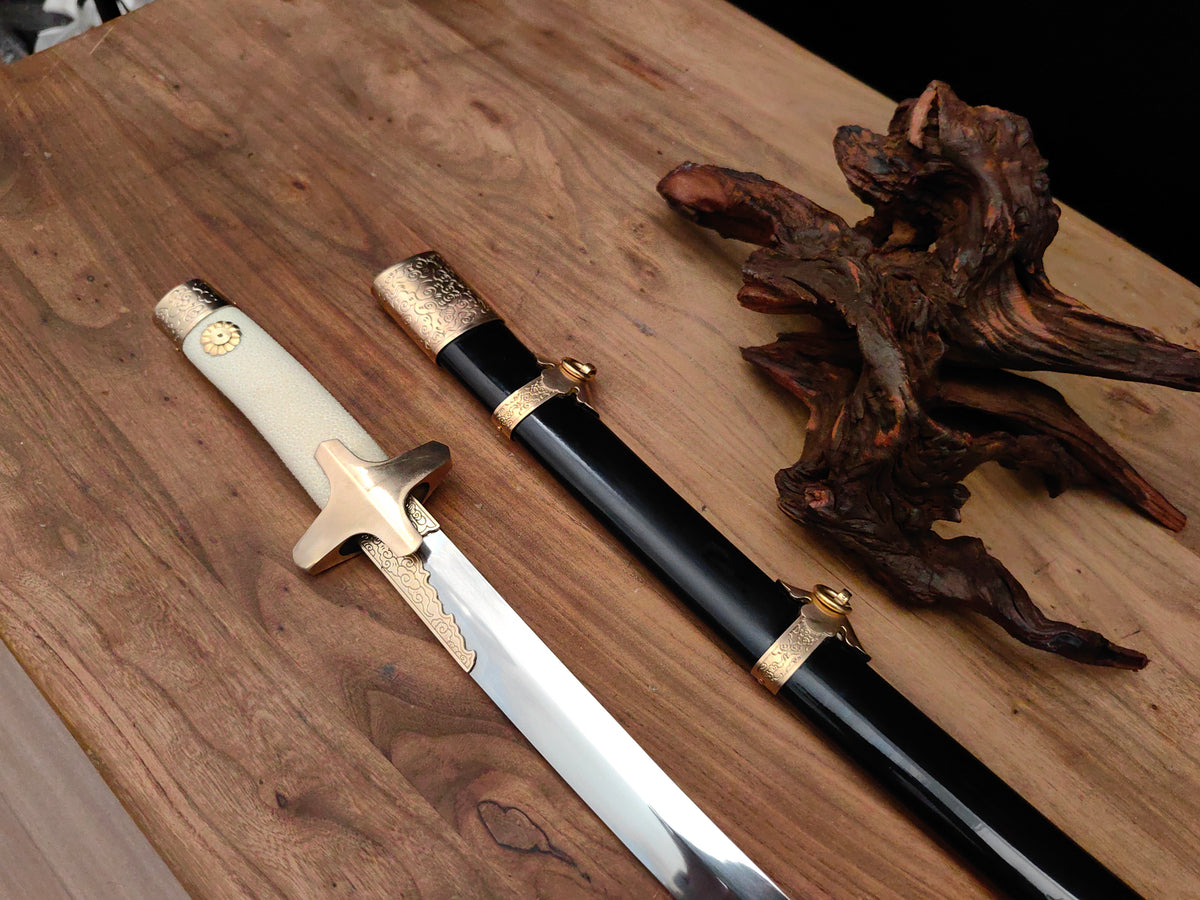

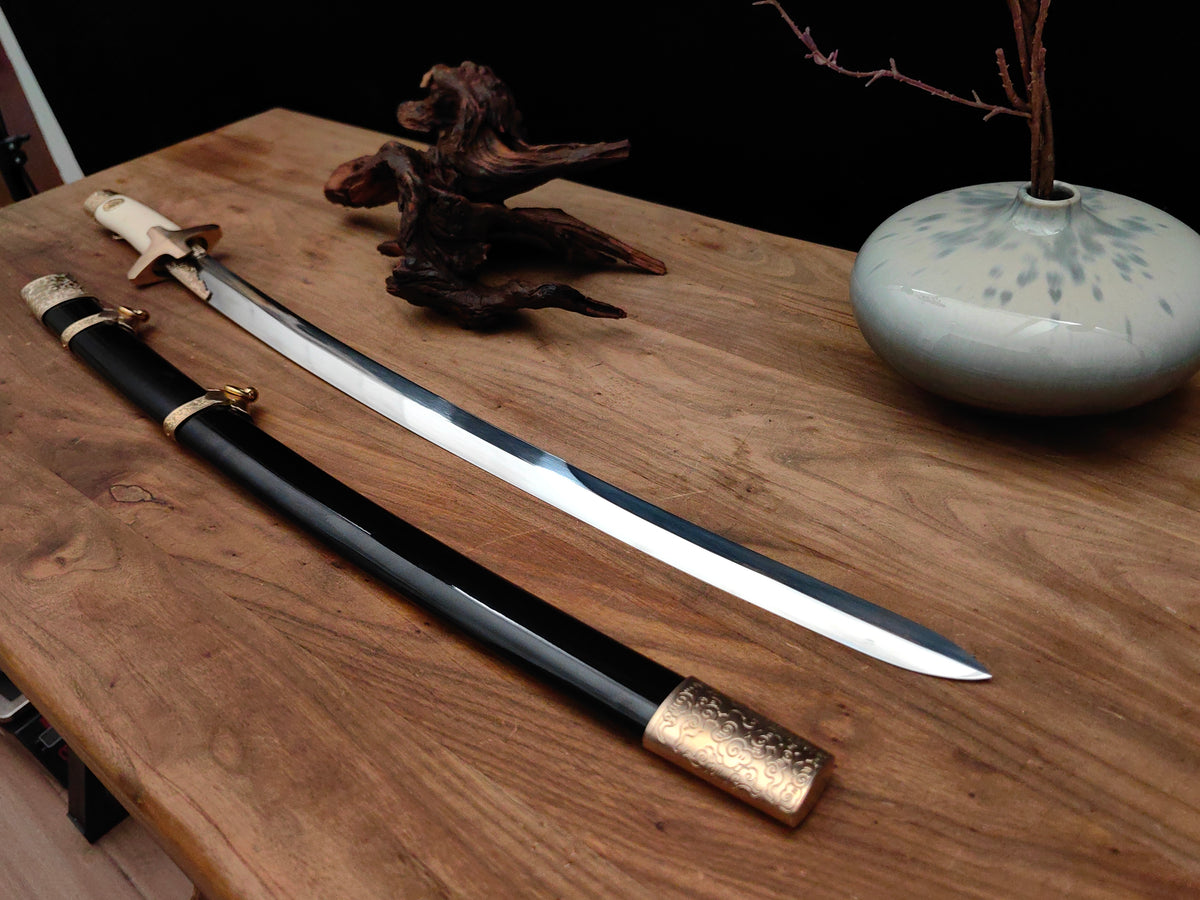

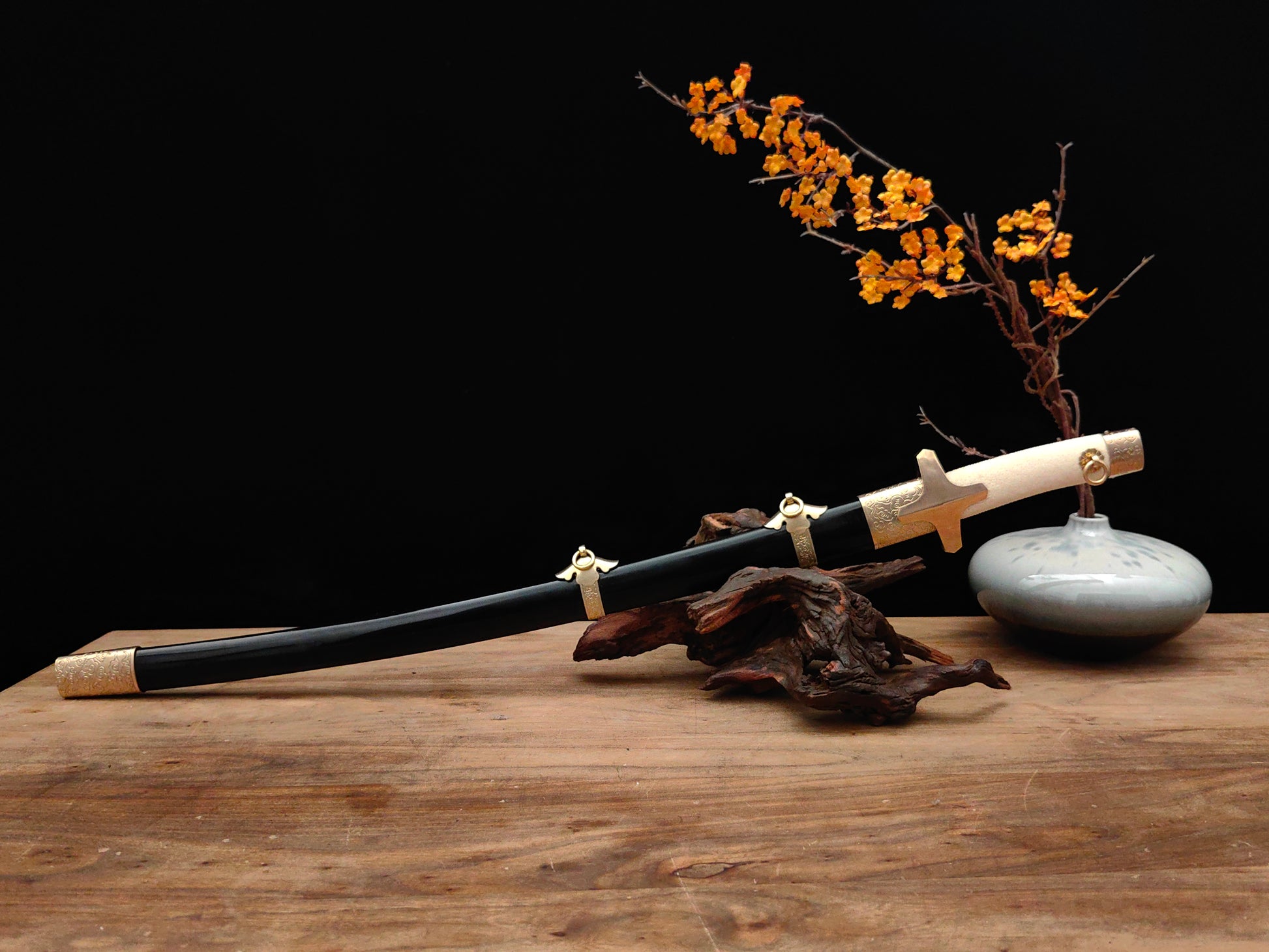

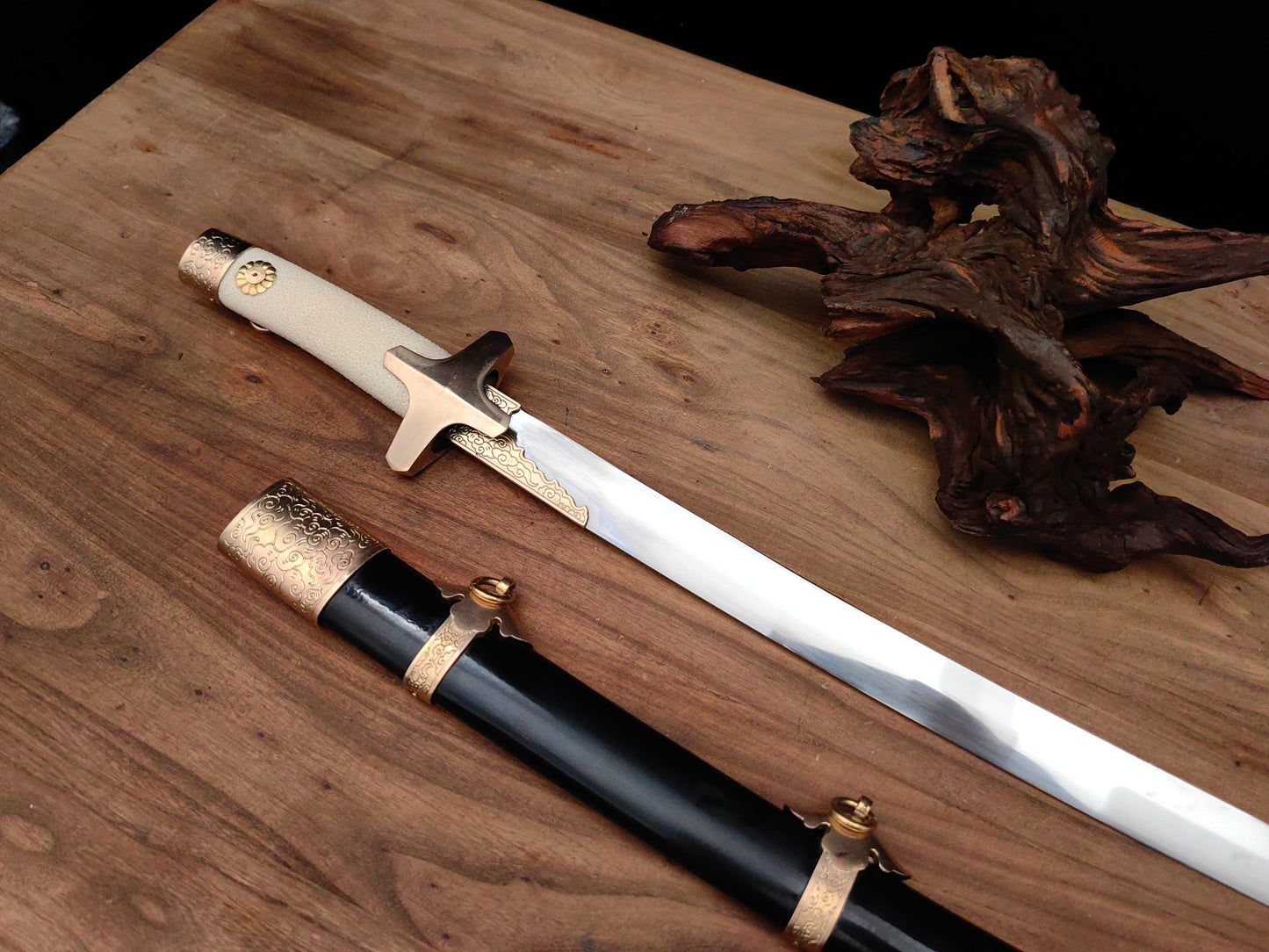

Mongol-Yuan Crossguard Dao

Name: Mongol-Yuan Crossguard Dao
Brand: SevenStarsSwords
Price: 280.00 USD
Availability: InStock

$280.00 USD

Sale Sold out

Shipping calculated at checkout.

Specifications

Specification	Details
Blade Length	70 cm
Handle Length	15 cm
Blade Width	32 mm at the base, tapering to 24 mm near the tip
Blade Thickness	7 mm at the base, distally tapering to 4 mm near the tip
Overall Length (Unsheathed)	86 cm
Overall Length (Sheathed)	89 cm
Weight (Unsheathed)	Approx. 740 g
Point of Balance	15 cm from the base of the guard / approx. 11 cm from the forward projection of the guard
Tang Width	26 mm

Materials & Construction

Feature	Details
Steel	Forged 60Si2Mn high-quality spring steel
Heat Treatment	Oil-quenched and tempered
Hardness	Approx. HRC 55
Flexibility	Approx. 80–90° flex with excellent toughness
Blade Finish	Hand-ground and mirror polished
Fittings	Precision steel-mold die-cast brass fittings, finely polished
Handle	Genuine soft-cured rayskin grip
Scabbard	Lacquered acacia-wood scabbard
Construction	Wide tang with solid brass mekugi

Improvements Over the Previous Generation

The previous generation of our Yuan Dao received valuable feedback from users, particularly regarding loose fittings, a slippery grip, and excessive weight. Each of these areas has been specifically addressed in this new generation.

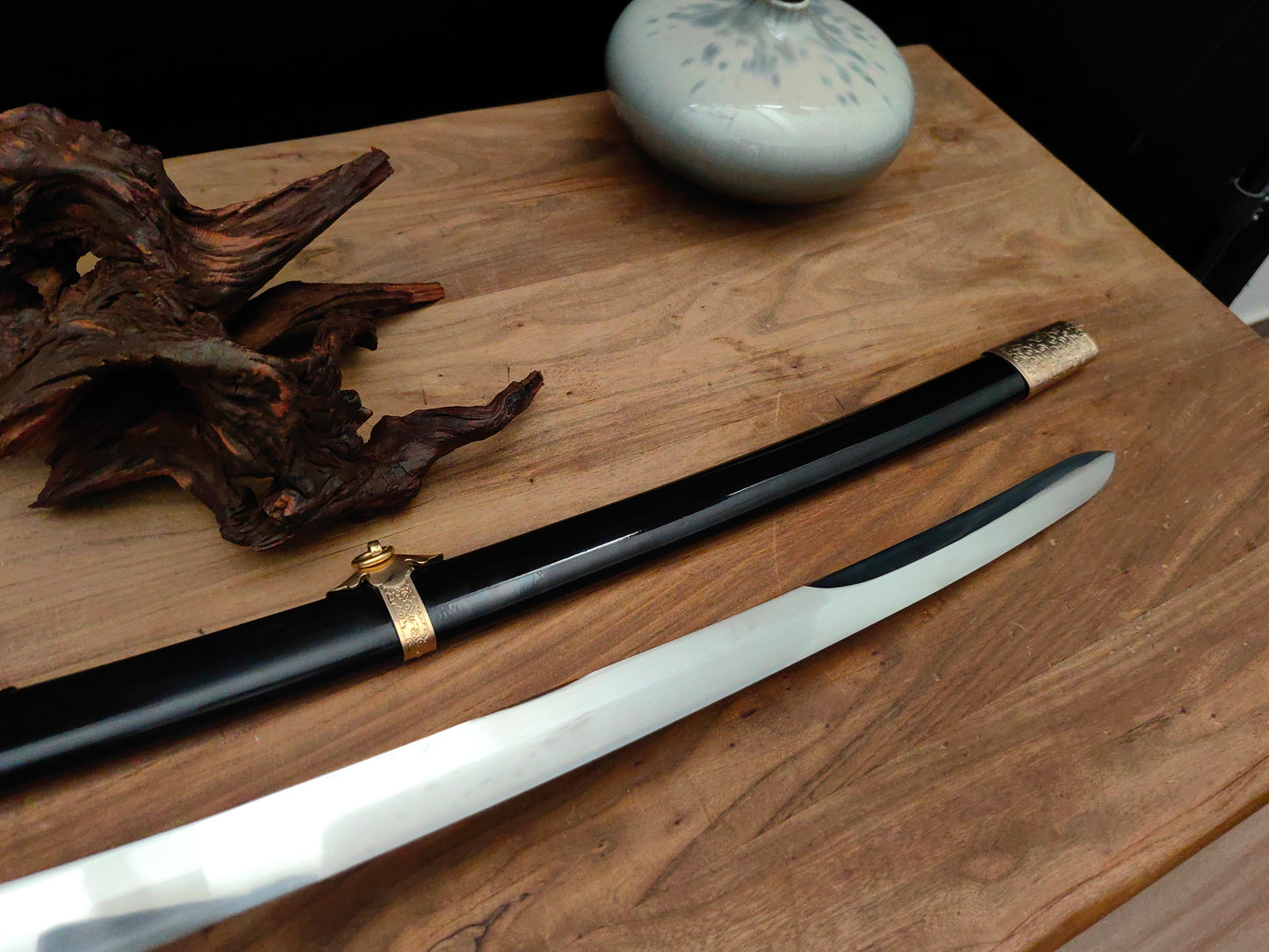

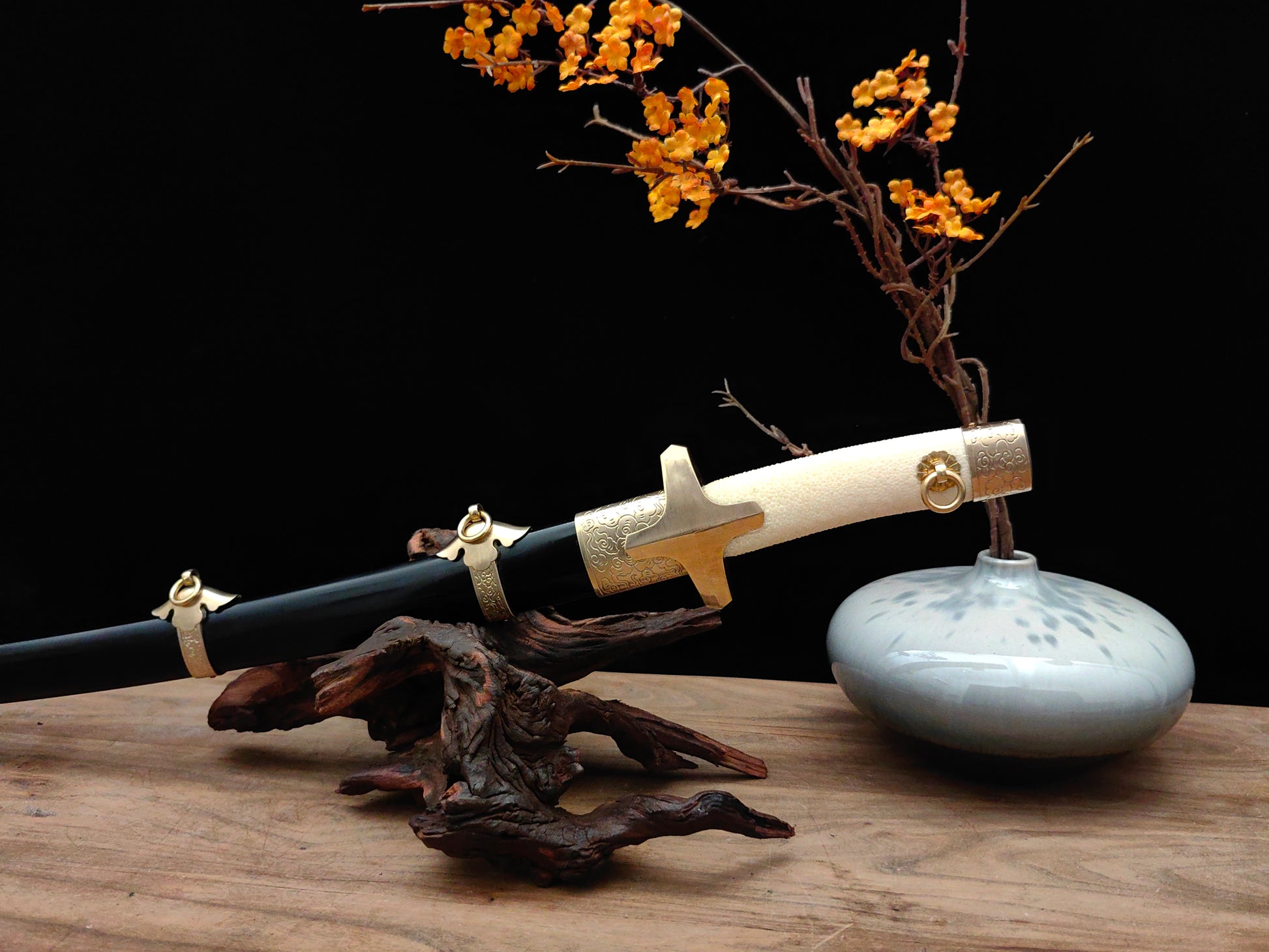

1. Improved Scabbard & Fitting Security

The previous ebony scabbard could shrink as temperature and humidity changed, occasionally causing the scabbard fittings to loosen.

For this generation, we switched to a lacquered scabbard with an acacia-wood core. Acacia offers high strength and relatively low shrinkage, while the lacquered exterior provides additional environmental protection.

The fittings are secured using 901 adhesive formulated for strong bonding between brass and lacquered surfaces, then further reinforced with small brass pins for long-term reliability.

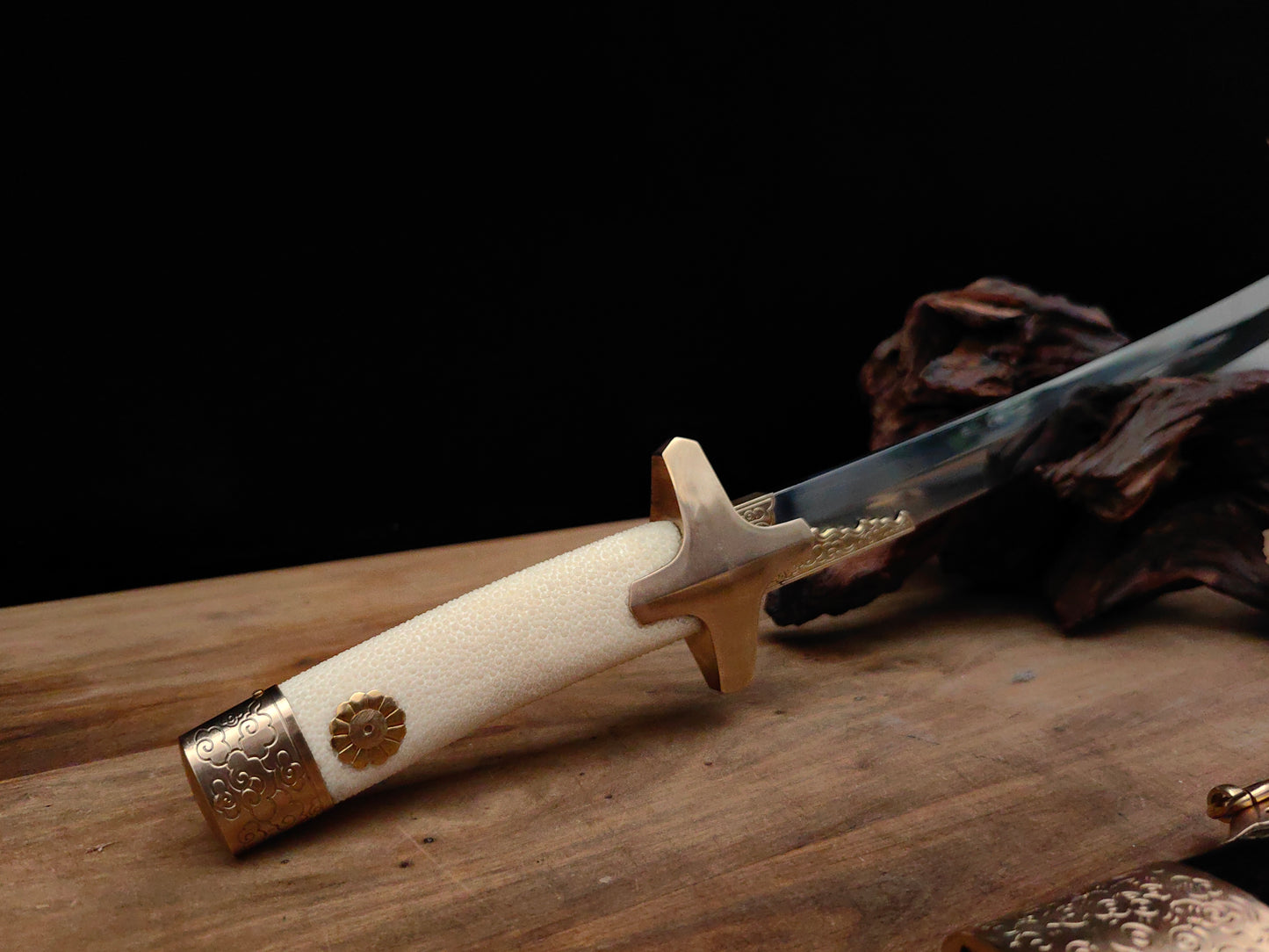

2. Genuine Soft-Cured Rayskin Grip

An unfinished wooden handle can become slippery when the hand begins to sweat. Because the crossguard and brass mekugi arrangement make conventional cord wrapping less suitable for this design, we chose genuine soft-cured rayskin instead.

The rayskin provides excellent traction without feeling abrasive against the hand and remains comfortable during extended handling.

3. Significantly Reduced Weight

The new generation has been reduced to approximately 740 g (1.63 lb), bringing it much closer to the weight range of historical examples.

The result is a noticeably faster and more responsive one-handed dao that remains comfortable and easy to control without sacrificing cutting authority.

Key Features

Feature	Description
Mongol-Yuan Historical Inspiration	Inspired by sabers of the Mongol-Yuan period. The distinctive crossguard likely reflects Central Asian influences seen in weapons such as the shamshir and talwar, giving the dao a historically appropriate character.
Robust Tang Construction	A wide 26 mm tang combined with a solid brass mekugi provides a strong and dependable mechanical assembly.
Light & Agile Handling	At approximately 740 g (1.63 lb), this is a remarkably light and maneuverable one-handed dao, designed for quick, comfortable handling.
Precision Fit & Finish	Components are carefully fitted with tight tolerances, while small brass retaining pins provide additional reinforcement to the scabbard fittings.
Climate-Resistant Lacquered Scabbard	The lacquered acacia-wood scabbard is designed to better resist humidity-related warping, cracking, and shrinkage. Acacia provides excellent structural strength comparable to other durable hardwoods commonly used for scabbards.
Soft-Cured Rayskin Grip	Genuine softened rayskin provides a secure, comfortable, non-slip grip with excellent long-term durability.
Precision Die-Cast Brass Fittings	The brass fittings are produced using steel molds for greater dimensional accuracy, crisp detailing, and structural strength. Compared with many lost-wax cast fittings, they resist deformation while maintaining sharper, cleaner details.
